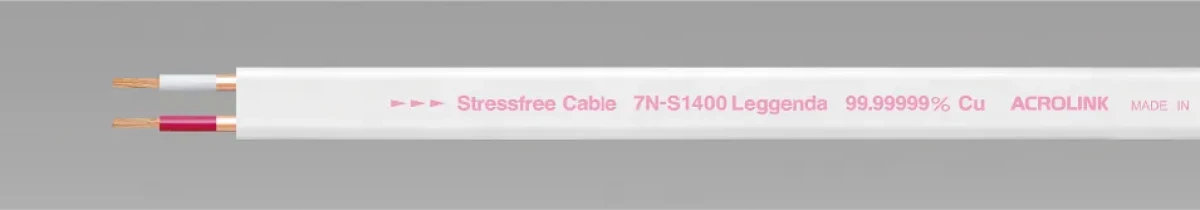

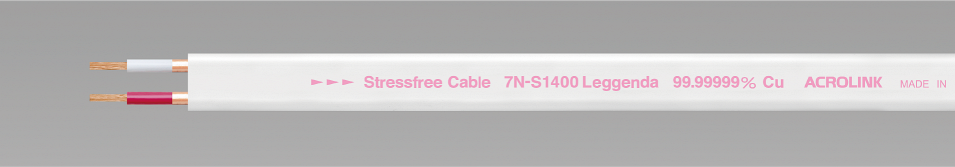

Acrolink 7N S1400 Mk III Legenda

  • Výrobce: Acrolink
  • 5 490 Kč
  • Kód 2: AC1400

Pro nákup se prosím přihlaste

Popis

Specifications

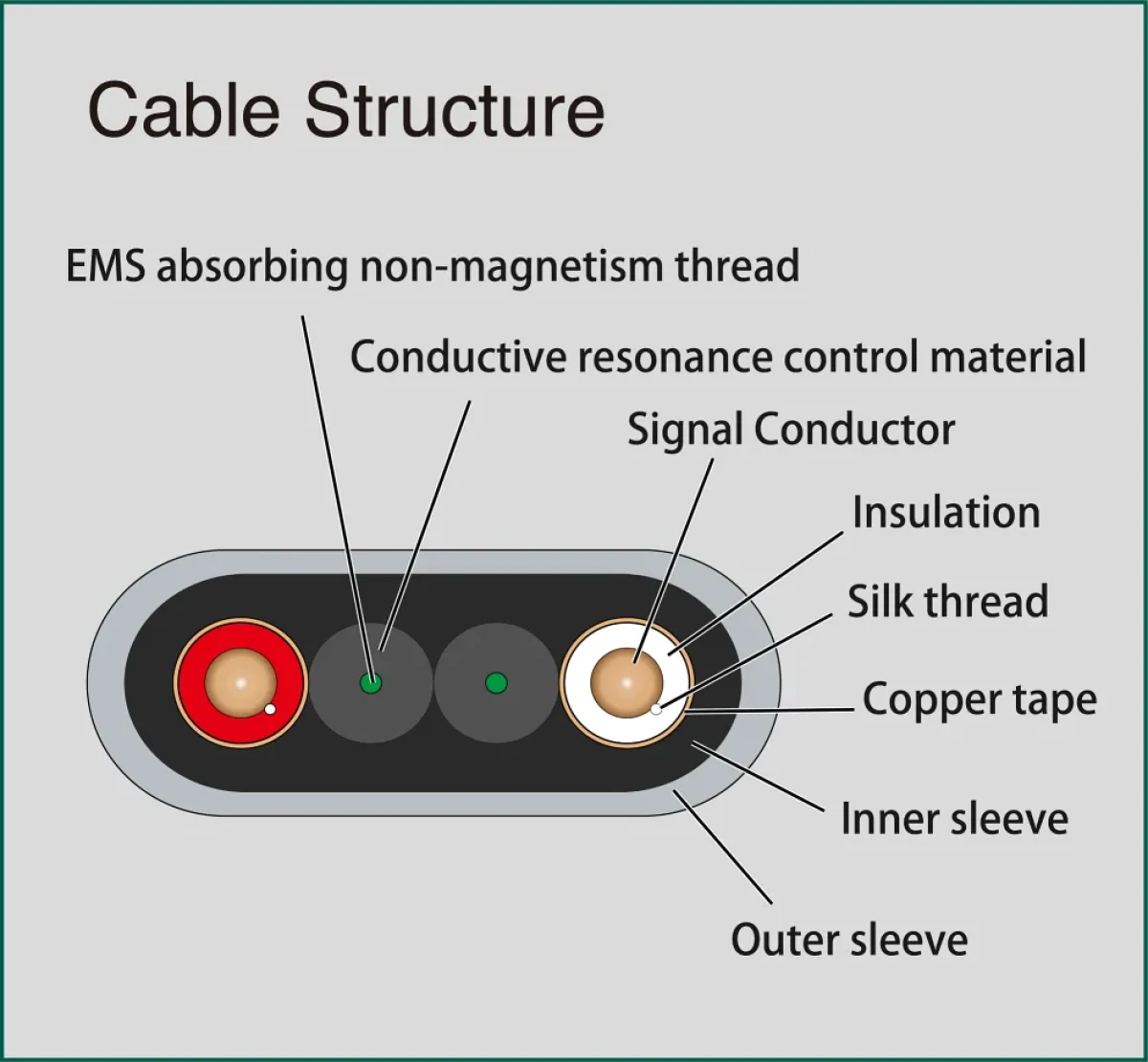

Outer diameter : 9.5 × 20.5mm
Single Conductor : 7N D.U.C.C Stressfree 0.37ø × 50 Strands(2 cores)
Single Conductor size : 5.36 Sq(AWG 10)
Insulation material : High molecular Polyolefin Resin(Red & White)
Resonance control core : Conductive resonance control material
(EMS absorbing non-magnetism thread inside)
Inner sleeve : High molecular Polyolefin Resin
Shielding : Copper tape
Outer sleeve : Lead free Polyvinyl Chloride(Pearl white finish)
Conductor resistance : 2.7 mΩ/m
Electrostatic capacitance : 19 pF/m
●Packaging : 30m on spool
