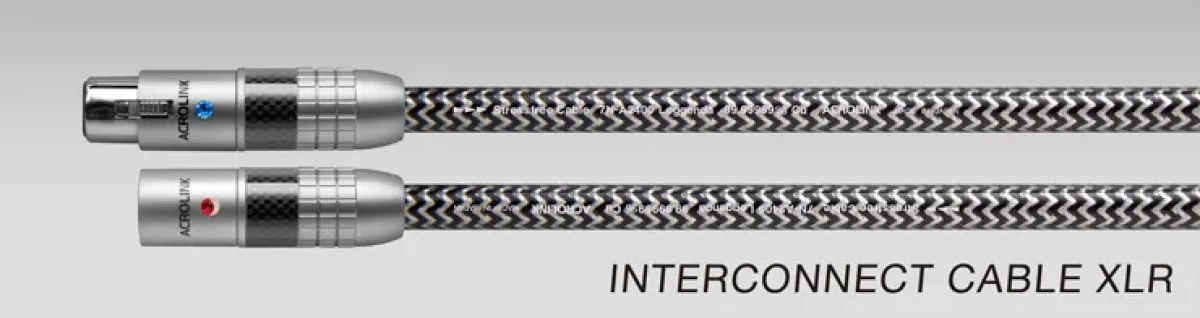

Acrolink 7N A2400 Leggenda XLR 1m

  • Výrobce: Acrolink
  • 23 989 Kč
  • Kód 2: AC2400xlr1

Pro nákup se prosím přihlaste

Popis

Specifications

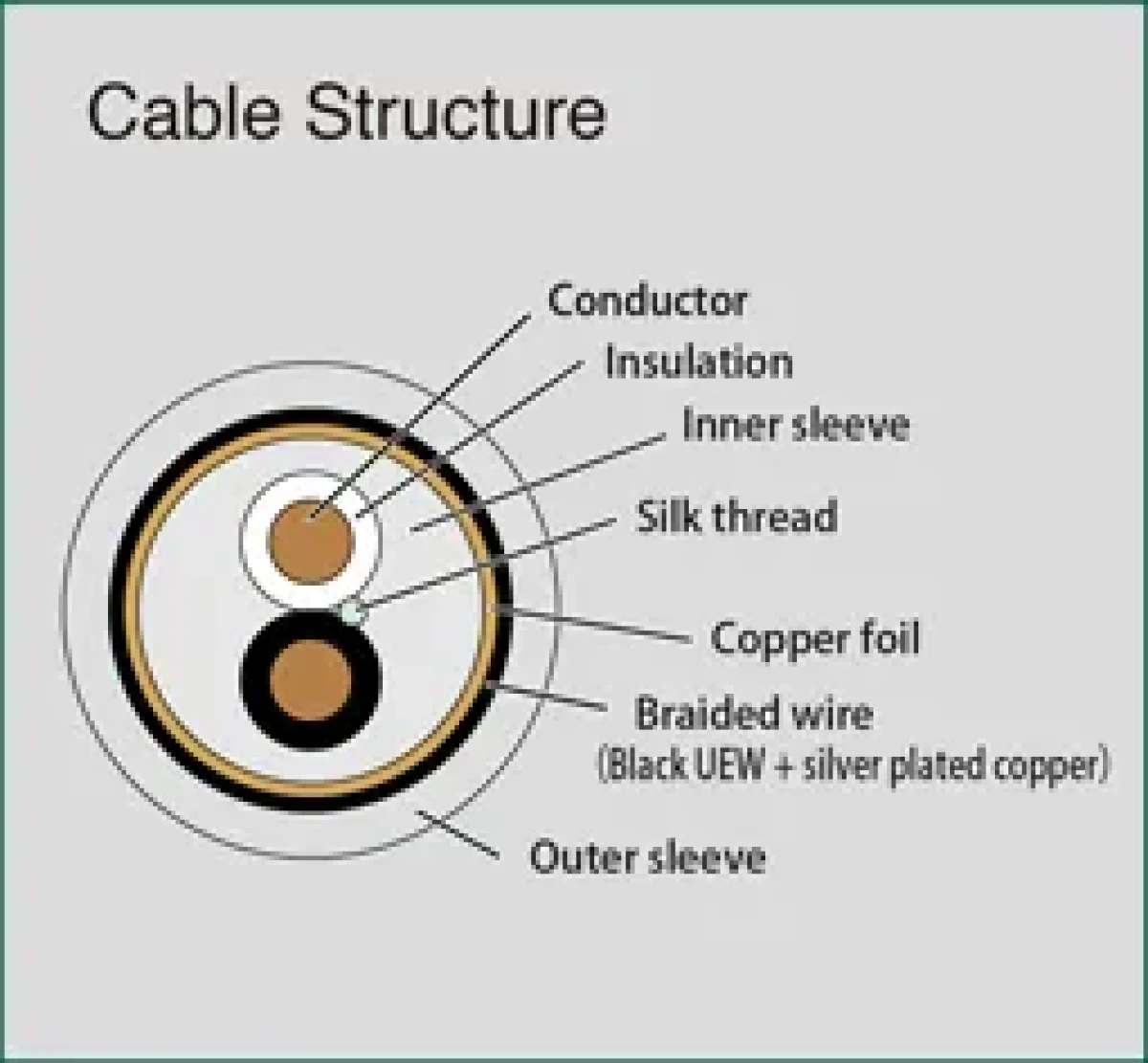

Conductor : 7N Cu D.U.C.C Stressfree 0.26ø x 19 strands x2 cores
Insulation : High molecular Polyolefin resin
Inner sleeve : High molecular Polyolefin resin with amorphous powder
Shielding : Copper foil tape + sliver plated copper wire + black UEW
Outer sleeve : Anti UV Polyurethane
Conductor resistance : 17 mΩ/m
Electrostatic capacitance : 69 pF/m
Cable diameter : 10.0mm


Typical Analysis impurities

Center contact pin : Hollow shaped Tellurium copper
Outer contact parts : Beryllium copper
Plating : Rhodium
Cover : Aluminum + Carbon fiber


Specifications

Male contact pins : Hpllow shaped Tellumrium copper
Female contact pins : Beryllium copper
Plating for contact pins : Rhodium
Outer body : Brass + carbon fiber
Impedance : 110Ω
